Front bumpers - removal and refitting

Bodywork / Front bumpers - removal and refitting

1 Remove the radiator grille as described in Section 6 to expose the two upper bumper fixing screws. Remove them (photos).

9.1A Front bumper upper fixing screw

9.1B Front bumper upper fixing screw

2 Working inside at the lower edge of the bumper remove the three fixing bolts.

3 Finally, unscrew the side bracket fixing bolts and lift the bumper away.

4 Refitting is a reversal of removal.

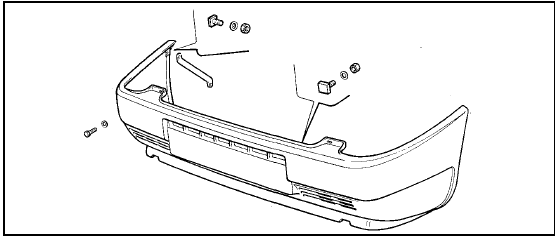

Fig. 12.3 Front bumper (Sec 9)

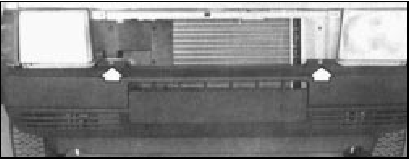

Fig. 12.4 Front bumper upper screws (Sec 9)

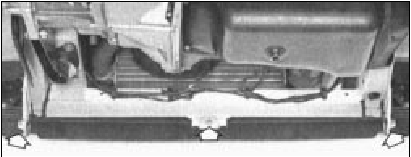

Fig. 12.5 Front bumper lower screws (Sec 9)
